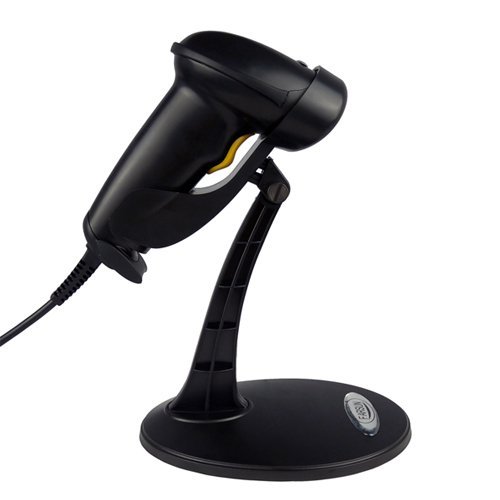

The barcode scanner is simple installation and ideal used in a wide range of situations and workplaces.
Feature:Automatic scanning. Design is stylish, includes adjustable standScan Speed 100 scans per second typical, Reading Distance: 2.5 - 600mm, Interfaces supported: USB .
Color: Black. Weight: 480g(with stand). Dimensions: 214mm x 165mm x 85mm.
Type of Cable: 2M or 6ft straight cableConnectivity Technology:Wired
Scanner Type: Bi-directional
Light Source: 650 - 670nm(visible)
Scanning type: Automatic scanning
Scan Rate: 100 scans per second
Resolution: 0.10mm (4mil) PCS0.9
Reading Distance: 2.5 - 600mm (100% UPC/EAN)
Print Contrast: 30% minimum reflective difference
Scanning angle: Inclination angle 45 degree, Elevation angle 60 degree.
Decode Capability:
Code11, Code39, Code93, Code32, Code128, Coda Bar, UPC-A, UPC-E,EAN-8, EAN-13, JAN.EAN/UPC Add-on2/5 MSI/Plessey, Telepen and China Postal CodeInterleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, more for Request
Interfaces Supported: USB
Current Consumption: 100mA (Idle Current < 40mA)
Voltage Requirement: 5VDC ?? 5%
Operating Temperature: 0 ??C - 50??C / 32??F to 122??F
Storage Temperature: -40??C - 70??C / -40??F to 158??F
Relative Humidity: 5% - 95% (non condensing)
Shock: 1.5m drop on concrete surface
Ambient Light Immunity: Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight
Electrostatic Discharge: Conforms to ??15KV air discharge and ??8KV of contact discharge
Safety: CE
Package Includes:
1 x USB Laser Barcode Scanner
1 x Fixed mount(1 x Saddle stande with one turning axis, 1 x Link pole with one Nut Sheath, 1 x Pedestal, 1 x Weight-added iron patch, 8 x Screw)
1 x Manual
|
